Gate Valve


Full port pressure temperature rating 200 PSI W.O.G.

350°F S.P. threaded ends conform to ANSI B 2.1, BS21,DIN259/2999.

Stainless steel class 200 inside screw bonnet, wedge disc integral seats, non-rising and hand wheel.

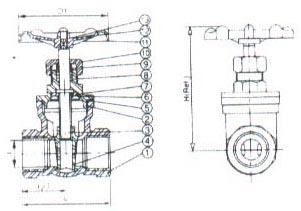

Materials
ITEM
PART NAME
MATERIAL
1
BODY
ASTM A351GR.CF8M
2
BONNET
ASTM A351GR.CF8M
3
STEM
S.S.316
4
DISC
ASTM A351GR.CF8M
5
GASKET
R-PTFE
6
STOP RING
S.S.304
7
LOCK NUT
S.S.316
8
PACKING
R-PTFE
9
GLAND
S.S.304
10
PACKING NUT
S.S.316
11
HANDLE WHEEL
ALUMINUM ASTM B85
12
NAME PLATE
ALUMINUM ALLOY
13
HAND WHEEL NUT
S.S.304

Dimensions
SIZE
D
L
H
D2
CvFACTOR
1/2"
15
55
92
70
17.6
3/4"
20
60
99
70
32.0
1"
25
66
113
80
97.0
1-1/4"
32
76
128
80
97.0
1-1/2"
40
86
147
90
135.0
2"
50
96
168
100
230.0
